Omron PLC CP1E Features

Exceptional Cost

Responding to Global Competition with More Device Control Possibilities

The CP1E all-in-one package PLCs provide high cost performance to further reduce costs by allowing you to select the
optimal CPU Unit from the E-type Basic Models or N-type Application Models.

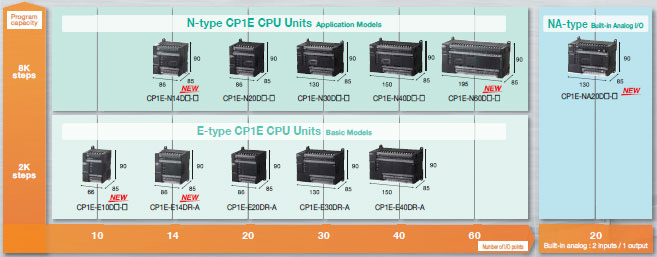

The optimal cost can be achieved efficiently with two types CP1E CPU Units.

CP1E_Features1



Simple and User Friendly

Intuitive control with "Smart Input."
Visual decision making is supported with the display of terminal locations.

Easy to use input editor with smart input function

When you begin typing an instruction from the keyboard in Ladder Editor Mode,suggested instructions are displayed
and the addresses are automatically entered.
Connecting lines are added automatically based on the cursor position, enabling intuitive ladder programming.



Easy Input Editor

  • Instruction and Address Input Assist Functions

When you begin typing an instruction from the keyboard while in the Ladder Editor Window, suggested instructions are displayed. All you have to do is select the instruction from the list for easy input even if you do not remember the entire mnemonic.
  • Address Incrementing

The address of the next operand, including input bits and output bits, is incremented by one and displayed as the default. This enables easily inputting consecutive addresses.
CP1E_Features2 CP1E_Features3



User-friendly Ladder Program Input

? Automatic Connecting Line Insertion

With the automatic connecting line insertion function the necessary connection is added automatically based on the curser position.

? Automatic Column Insertion When Inserting Instructions

The column is automatically inserted when an instruction is added even if the curser is above another instruction.

CP1E_Features4

When an instruction is input at the curser, a connecting line is automatically inserted.

CP1E_Features5

When an instruction is input at the curser, a column is automatically inserted for the instruction.

Easily Reuse Ladder Programming

? Copying with Address Incrementing

To create the same group of ladder instructions more than once with the address addition copy function, the instructions can be reused simply by inputting an address offset.

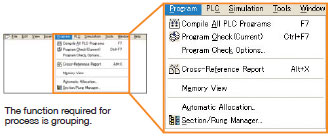

Intuitive Menu Structure

? Intuitive Menu Display

An intuitively designed menu structure makes it easy to see the overall system simply by looking at the menu for smooth operation without referring to a manual.
CP1E_Features6 CP1E_Features7

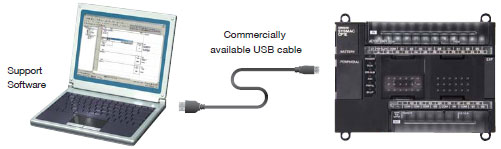

Only commercially available USB cables required

All CP1E CPU Units use high-speed USB for the peripheral port. Computers can be connected using commercially
available USB cables. Without the need for USB conversion cables or special cables, connection is easier and cable
cost is low.

CP1E_Features8

I/O Status at a Glance

The terminal layout display features I/O indicators. The indicators are in the same position as the terminals
to let you see the I/O status at a glance. You can easily identify I/O status or perform status checks at startup
or during operation.

CP1E_Features9

Efficient and Effective

Flexibly handle even small-scale systems.
Various Option Units available for increased expandability.

More Applications with Advanced Control Capabilities and Functionality (N/NA-type only)

The CP1E N/NA-type CPU Units are equipped with high-speed counters, pulse outputs, and a built-in
serial port. An option board for an additional Serial or Ethernet communication port is available. These
features enable controlling a wide range of devices.

CP1E_Features10



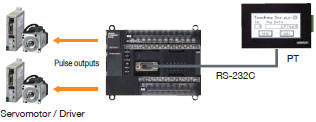

Pulse Outputs

Two 100kHz pulse outputs for high-precision position control.

Note: Models with transistor outputs.

Modbus-RTU Easy Master

Specify Inverter speeds via RS-422A/485.
CP1E_Features11 CP1E_Features12

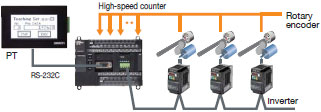

High-speed Counters

Control multiple axes with one PLC using the two
100kHz and four 10kHz, single-phase high-speed
counters.

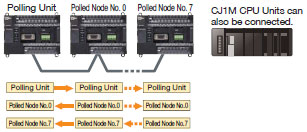

Serial PLC Links

Link data with up to 10 words between up to nine CP1E-N CPU Units when controlling a device with multiple CP1E-N PLCs.
CP1E_Features13 CP1E_Features14

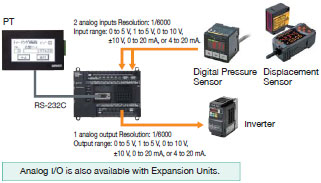

Analog I/O (NA-type only)

Built-in analog I/O, two inputs and one output, for NA-type CPU Units.
Analog Control and Monitoring with Only a Single CPU Unit.

Ethernet Communications

Mount a CP1W-CIF41 Ethernet Option Board to an option board slot on the CP1E-N/NA type CPU Unit.
Perform monitoring and programming with CX-Programmer,or PT communicate with a host computer via Ethernet.
CP1E_Features15 CP1E_Features16

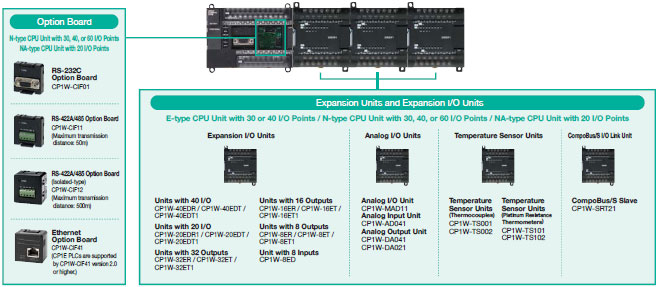

Optional units for more flexibility

Three expansion units are available. An option board for an additional Serial or Ethernet communication port can be added to
N/NA-type CPU unit.

CP1E_Features17



Omron PLC Lineup

E-type CP1E CPU Units (Basic Models)

Product
name
Specifications
 External power supply
(24 VDC) (A)		 Current
consumption
(A)		 Model Stand-
ards
Power
Supply		 Inputs Out-
puts		 Output
type		 Program
capacity		 Data
memory
capacity		 5 V 24 V
E-type
CPU Units
with 10 I/O
Points
100 to
240 VAC		 6 4

Relay

 2K steps 2K words

---

0.08

 0.04 CP1E-E10DR-A UC1, N,
L, CE
Transsistor (sinking) ---

0.11

 --- CP1E-E10DT-A
Transistor (sourcing) --- 0.11 --- CP1E-E10DT1-A
24 VDC Relay --- 0.08 0.04 CP1E-E10DR-D
Transistor (sinking) --- 0.11 --- CP1E-E10DT-D
Transistor (sourcing) --- 0.11 --- CP1E-E10DT1-D
E-type
CPU Units
with 14 I/O
Points
100 to
240 VAC		 8 6 Relay 2K steps 2K words --- 0.16 0.07 CP1E-E14DR-A UC1, N,
L, CE
E-type
CPU Units
with 20 I/O
Points
100 to
240 VAC		 12 8 Relay 2K steps 2K Words --- 0.17 0.08 CP1E-E20DR-A UC1, N,
L, CE
E-type
CPU Units
with 30 I/O
Points
100 to
240 VAC		 18 12 Relay 2K steps 2K words 0.3 0.17 0.07 CP1E-E30DR-A UC1, N,
L, CE
E-type
CPU Units
with 40 I/O
Points
100 to
240 VAC		 24 16 Relay 2K steps 2K words 0.3 0.17 0.09 CP1E-E40DR-A UC1, N,
L, CE

Note:There are no accessories included with E-type CP1E CPU Units. A Battery (CP1W-BAT01) cannot be used.

N/NA-type CP1E CPU Units (Application Models)

Product
name
Specifications
 External power supply (24 VDC) (A) Current
consump-
tion (A)		 Model Stand-
ards
Power
Supply		 In-
puts		 Out-
puts		 Output type Program
capacity		 Data
memory
capacity		 5 V 24 V
N-type
CPU Units
with 14 I/O
Points
100 to
240 VAC		 8 6 Relay 8K
steps		 8K
words

---

 0.17 0.07 CP1E-N14DR-A UC1, N,
L, CE
Transistor
(sinking)		 --- 0.22 0.02 CP1E-N14DT-A
24 VDC Transistor
(sourcing)		 --- 0.22 0.02 CP1E-N14DT1-A
Relay --- 0.17 0.07 CP1E-N14DR-D
Transistor
(sinking)		 --- 0.22 0.02 CP1E-N14DT-D
Transistor
(sourcing)		 --- 0.22 0.02 CP1E-N14DT1-D
N-type
CPU Units
with 20 I/O
Points
100 to
240 VAC		 12 8 Relay 8K
steps		 8K
words		 --- 0.18 0.08 CP1E-N20DR-A UC1, N,
L, CE
Transistor
(sinking)		 --- 0.23 0.02 CP1E-N20DT-A
Transistor
(sourcing)		 --- 0.23 0.02 CP1E-N20DT1-A
Relay --- 0.18 0.08 CP1E-N20DR-D
Transistor
(sinking)		 --- 0.23 0.02 CP1E-N20DT-D
24 VDC Transistor
(sourcing)		 --- 0.23 0.02 CP1E-N20DT1-D
N-type
CPU Units
with 30 I/O
Points
100 to
240 VAC		 18 12 Relay 8K
steps		 8K
words		 0.3 0.21 0.07 CP1E-N30DR-A UC1, N,
L, CE
Transistor
(sinking)		 0.3 0.27 0.02 CP1E-N30DT-A
Transistor
(sourcing)		 0.3 0.27 0.02 CP1E-N30DT1-A
Relay --- 0.21 0.07 CP1E-N30DR-D
Transistor
(sinking)		 --- 0.27 0.02 CP1E-N30DT-D
24 VDC Transistor
(sourcing)		 --- 0.27 0.02 CP1E-N30DT1-D
N-type
CPU Units
with 40 I/O
Points
100 to
240 VAC		 24 16 Relay 8K
steps		 8K
words		 0.3 0.21 0.09 CP1E-N40DR-A UC1, N,
L, CE
Transistor
(sinking)		 0.3 0.31 0.02 CP1E-N40DT-A
Transistor
(sourcing)		 0.3 0.31 0.02 CP1E-N40DT1-A
Relay --- 0.21 0.09 CP1E-N40DR-D
Transistor
(sinking)		 --- 0.31 0.02 CP1E-N40DT-D
24 VDC Transistor
(sourcing)		 --- 0.31 0.02 CP1E-N40DT1-D
N-type
CPU Units
with 60 I/O
Points
100 to
240 VAC		 36 24 Relay 8K
steps		 8K
words		 0.3 0.21 0.13 CP1E-N60DR-A UC1, N,
L, CE
Transistor
(sinking)		 0.3 0.31 0.02 CP1E-N60DT-A
Transistor
(sourcing)		 0.3 0.31 0.02 CP1E-N60DT1-A
Relay --- 0.21 0.13 CP1E-N60DR-D
Transistor
(sinking)		 --- 0.31 0.02 CP1E-N60DT-D
24 VDC Transistor
(sourcing)		 --- 0.31 0.02 CP1E-N60DT1-D
NA-type
CPU Units
with 20 I/O
Points
(Built-in
analog)
100 to
240 VAC		 12
(Built-
in
analog
inputs:
2)		 8
(Built-
in
analog
outputs:
1)		 Relay 8K
steps		 8K
words		 0.3 0.18 0.11 CP1E-NA20DR-A UC1, N,
L, CE
Transistor
(sinking)		 --- 0.23 0.09 CP1E-NA20DT-D
24 VDC Transistor
(sourcing)		 --- 0.23 0.09 CP1E-NA20DT1-D
Battery Set
For N/NA-type CP1E CPU Units
Note: Mount a Battery to an N/NA-type CPU Unit if the data in the following areas must be
backed up for power interruptions.
DM Area (D) (except backed up words in the DM Area), Holding Area (H), Counter Completion
Flags (C), Counter Present Values (C), Auxiliary Area (A), and Clock Function
(Use batteries within two years of manufacture.)		 CP1W-BAT01 --

Note:There are no accessories included with N/NA-type CP1E CPU Units. RS-232C connectors for the built-in RS-232C port and the Battery (CP1W-BAT01) are not included.

Options (for CP1E N30/40/60 or NA20 CPU Units)

The Options cannot be used for CP1E N14/20 CPU Units and all E-type CPU Units.

Product name Specifications Model Standards
RS-232C
Option Board		 One RS-232C Option Board can be mounted to the Option Board slot.
For CP1E N30/40/60 or NA20 CPU Units only.
One RS-232C connector is included.		 CP1W-CIF01 UC1, N,
L, CE
RS-422A/485
Option Board		 One RS-422A/485 Option Board can be mounted to the Option Board slot.
For CP1E N30/40/60 or NA20 CPU Units only.		 CP1W-CIF11
RS-422A/485
Isolated-type
Option Board		 CP1W-CIF12 UC1, N,
L, CE
Ethernet
Option Board		 One Ethernet Option Board can be mounted to the Option Board slot.
CP1E CPU Units are supported by CP1W-CIF41 version 2.0 or higher.
For CP1E N30/40/60 or NA20 CPU Units only.
When using CP1W-CIF41, CX-Programmer version 9.12 or higher is required.		 CP1W-CIF41 UC1, N,
L, CE

Note:It is not possible to use a CP-series Ethernet Option Board version 1.0 (CP1W-CIF41), LCD Option Board (CP1W-DAM01), or Memory Card (CP1W-ME05M) with a CP1E CPU Unit.

Programming Devices

Product name Specifications Model Standards
Number
of
licenses		 Media
FA Integrated
Tool Package
CX-One Lite
Ver.4.[]		 CX-One Lite is a subset of the complete CX-One package that
provides only the Support Software required for micro PLC
applications.
CX-One Lite runs on the following OS.
OS: Windows XP (Service Pack 3 or higher), Vista or 7
Note: Except for Windows XP 64-bit version.
CX-One Lite Ver.4.[] includes Micro PLC Edition CX-
Programmer Ver.9.[].		 1 license CD CXONE-LT01C-V4 ---
FA Integrated
Tool Package
CX-One
Package
Ver. 4.[]		 CX-One is a comprehensive software package that integrates
Support Software for OMRON PLCs and components. CX-One
runs on the following OS.
OS: Windows XP (Service Pack 3 or higher), Vista or 7
Note: Except for Windows XP 64-bit version.
CX-One Ver. 4.[] includes CX-Programmer Ver. 9.[].		 1 license
*1		 DVD
*2		 CXONE-AL01D-V4 ---

Note:

1.The E20, E30, E40, N20, N30 and N40 CPU Units are supported by CX-Programmer version 8.2 or higher.
The E10, E14, N14, N60, and NA20 CPU Units are supported by CX-Programmer version 9.03 or higher.
When Micro PLC Edition CX-Programmer is used, you need version 9.03 or higher.

2.The CX-One and CX-One Lite cannot be simultaneously installed on the same computer.

*1.Multi licenses are available for the CX-One (3, 10, 30 or 50 licenses).

*2.The CX-One is also available on CD (CXONE-AL[][]C-V4).

The following tables lists the Support Software that can be installed from CX-One

Support Software in CX-One
CX-One Lite
Ver.4.[]
CX-One
Ver.4.[]
Support Software in CX-One
CX-One Lite
Ver.4.[]
CX-One
Ver.4.[]
Micro PLC Edition CX-Programmer Ver.9.[] Yes No CX-Drive Ver.2.[] Yes Yes
CX-Programmer Ver.9.[] No Yes CX-Process Tool Ver.5.[] No Yes
CX-Programmer Ver.2.[] Yes Yes Faceplate Auto-Builder for NS Ver.3.[] No Yes
Switch Box Utility Ver.1.[] Yes Yes CX-Designer Ver.3.[] Yes Yes
CX-Protocol Ver.1.[] No Yes NV-Designer Ver.1.[] Yes Yes
CX-Simulator Ver.1.[] Yes Yes CX-Thermo Ver.4.[] Yes Yes
CX-Position Ver.2.[] No Yes CX-ConfiguratorFDT Ver.1.[] Yes Yes
CX-Motion-NCF Ver.1.[] No Yes CX-Flnet Ver.1.[] No Yes
CX-Motion-MCH Ver.2.[] No Yes Network Configurator Ver.3.[] Yes Yes
CX-Motion Ver.2.[] No Yes CX-Server Ver.4.[] Yes Yes

Expansion I/O Units and Expansion Units (for CP1E E30/40, N30/40/60, or NA20 CPU Units)

CP1E E10/14/20 or N14/20 CPU Units do not support Expansion I/O Units and Expansion Units.

Unit type Product name Specifications Current
consumption (A)		 Model Standards
Inputs Outputs Output type 5 V 24 V
CP1W
Expansion
I/O Units		 Input Unit
8 --- ---

0.018

 --- CP1W-8ED U, C, N,
L, CE
Output Units
--- 8 Relay 0.026 0.044 CP1W-8ER
Transistor (sinking) 0.075 -- CP1W-8ET
Transsistor (sourcing) 0.075 -- CP1W-8ET1
Output Units
--- 16 Relay 0.042 0.090 CP1W-16ER N, L, CE
Transistor (sinking) 0.076 -- CP1W-16ET
Transsistor (sourcing) 0.076 -- CP1W-16ET1
Output Units
--- 32 Relay 0.049 0.131 CP1W-32ER N, L, CE
Transistor (sinking) 0.113 -- CP1W-32ET
Transsistor (sourcing) 0.113 -- CP1W-32ET1
I/O Units
12 8 Relay 0.103 0.044 CP1W-20EDR1 U, C, N,
L, CE
Transistor (sinking)

0.130

 -- CP1W-20EDT
Transsistor (sourcing) 0.130 -- CP1W-20EDT1
I/O Units
24 16 Relay 0.080 0.090 CP1W-40EDR N, L, CE
Transistor (sinking) 0.160 -- CP1W-40EDT
Transsistor (sourcing)

0.160

 -- CP1W-40EDT1
CP1W
Expansion
Units		 Analog Input Unit
4 analog inputs
Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V,
±10 V, 0 to 20 mA, or 4 to 20 mA.
Resolution: 1/6000		 0.100 0.090 CP1W-AD041 UC1, N,
L, CE
Analog Output Unit
2 analog outputs
Output range: 1 to 5 V, 0 to 10 V, ±10 V,
0 to 20 mA, or 4 to 20 mA.
Resolution: 1/6000		 0.040 0.095 CP1W-DA021 UC1, CE
4 analog outputs
Output range: 0 to 5 V, 1 to 5 V, 0 to 10 V,
±10 V, 0 to 20 mA, or 4 to 20 mA.
Resolution: 1/6000		 0.080 0.124 CP1W-DA041 UC1, N,
L, CE
Analog Output Unit
4 analog outputs
Output range: 0 to 5 V, 1 to 5 V, 0 to 10 V,
±10 V, 0 to 20 mA, or 4 to 20 mA.
Resolution: 1/6000		 0.080 0.124 CP1W-DA041 UC1, N,
L, CE
Analog I/O Unit
2 analog inputs and 1 analog output
Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V,
±10 V, 0 to 20 mA, or 4 to 20 mA.
Output range: 1 to 5 V, 0 to 10 V, ±10 V,
0 to 20 mA, or 4 to 20 mA.
Resolution: 1/6000		 0.083 0.110 CP1W-MAD11
Temperature
Sensor Unit
2 temperature sensor inputs
Sensor type: Thermocouple (J or K)		 0.040 0.059 CP1W-TS001
4 temperature sensor inputs
Sensor type: Thermocouple (J or K)		 0.040 0.059 CP1W-TS002
2 temperature sensor inputs
Sensor type: Platinum resistance
thermometer (Pt100 or JPt100)		 0.054 0.073 CP1W-TS101
4 temperature sensor inputs
Sensor type: Platinum resistance
thermometer (Pt100 or JPt100)		 0.054 0.073 CP1W-TS102
CompoBus/S
I/O Link Unit
CompoBus/S slave
8 inputs and 8 outputs		 0.029 -- CP1W-SRT21

I/O Connecting Cable

Product name Specifications Model Standards
I/O Connecting Cable 80 cm (for CP1W Expansion I/O Units and Expansion Units)
Only one I/O Connecting Cable can be used in each PLC		 CP1W-CN811 UC1, N, L, CE

Note:An I/O Connecting Cable (approx. 6 cm) for horizontal connection is provided with CP1W Expansion I/O Units and Expansion Units.

Automation Software

Software plays a vital role in developing more effective automated data acquisition and control systems. Advantech's advanced software solutions are more complete, more integrated and more open, providing excellent capabilities to communicate with other devices, especially for data acquisition, testing and measurement, and control applications.

Product Catagories

HMI/SCADA Software

Advantech WebAccess is a browser-based HMI/SCADA software allowing users to control and configure systems remotely over the internet with a central project database and distributed SCADA architectures. Advantech Studio is a powerful, integrated collection of automation tools including all the building blocks required to develop HMI/SCADA applications. Advantech's complete SCADA/HMI software offering empowers professionals to develop applications efficiently and cost-effectively.

SoftLogic Software

Advantech's Programmable Automation Controller (PAC) solutions leverage KW Software's Multiprog and ProConOS as the single developing tool and SoftLogic control kernel. It requires only a one-time design, and then users can easily leverage their control know-how into different control platforms to meet versatile automation projects and save costs.

OPC Server

The Industrial Automation Group of Advantech introduces a standardized interface for industrial device servers, the OPC (OLE for process control) Server. An OPC server provides devices, such as an I/O device, to communicate with a wide range of HMI/SCADA software packages residing on a host. Any software system with OPC client capabilities can access the Advantech OPC server drivers.

Software Development Kits

Advantech's software development kits (SDKs) include ActiveX controllers, such as A-DAQ Pro and LogixView, and utilities, like ADAMView and DiagAnywhere. With these software development tools, programmers can build data acquisition and remote monitoring systems easier and more flexibly.





Omron CP1E Specifications

General Specifications

Type AC power supply models DC power supply models
Model CP1E-[][][]D[]-A CP1E-[][][]D[]-D
Enclosure Mounted in a panel
Dimensions (H × D × W) CPU Unit with 10 I/O points (CP1E-E10D[]-[]): 90mm *1 ×85mm *2 × 66 mm
CPU Unit with 14 or 20 I/O points (CP1E-[]14D[]-[]/[]20D[]-[]): 90mm *1 × 85mm *2 × 86 mm
CPU Unit with 30 I/O points (CP1E-[]30D[]-[]): 90mm *1 × 85mm *2 × 130 mm
CPU Unit with 40 I/O points (CP1E-[]40D[]-[]): 90mm *1 × 85mm *2 × 150 mm
CPU Unit with 60 I/O points (CP1E-N60D[]-[]): 90mm *1 ×85mm *2 × 195 mm
CPU Unit with 20 I/O points and built-in analog (CP1E-NA20D[]-[]): 90mm *1 ×85mm *2 × 130 mm
Weight CPU Unit with 10 I/O points (CP1E-E10D[]-[]): 300g max.
CPU Unit with 14 I/O points (CP1E-[]14D[]-[]): 360g max.
CPU Unit with 20 I/O points (CP1E-[]20D[]-[]): 370g max.
CPU Unit with 30 I/O points (CP1E-[]30D[]-[]): 600g max.
CPU Unit with 40 I/O points (CP1E-[]40D[]-[]): 660g max.
CPU Unit with 60 I/O points (CP1E-N60D[]-[]): 850g max.
CPU Unit with 20 I/O points and built-in analog (CP1E-NA20D[]-[]): 680g max.
Electrical
specifica-
tions		 Supply voltage 100 to 240 VAC 50/60 Hz 24 VDC
Operating voltage
range		 85 to 264 VAC 20.4 to 26.4 VDC
Power consumption 15 VA/100 VAC max.
25 VA/240 VAC max.
(CP1E-E10D[]-A/[]14D[]-A/[]20D[]-A)		 9 W max. (CP1E-E10D[]-D)
13 W max. (CP1E-N14D[]-D/N20D[]-D)
50 VA/100 VAC max.
70 VA/240 VAC max.
(CP1E-NA20D[]-A/[]30D[]-A/[]40D[]-A/N60D[]-A)		 20 W max.
(CP1E-NA20D[]-D/N30D[]-D/N40D[]-D/N60D[]-D) *4
Inrush current 120 VAC, 20 A for 8 ms max. for cold start at
room temperature
240 VAC, 40 A for 8 ms max. for cold start at
room temperature		 24 VDC, 30 A for 20 ms max. for cold start at room
temperature
External power supply
*3		 Not provided.
(CP1E-E10D[]-A/[]14D[]-A/[]20D[]-A)
24 VDC, 300 mA
(CP1E-NA20D[]-A/[]30D[]-A/[]40D[]-A/N60D[]-A)		 Not provided
Insulation resistance 20 MΩ min. (at 500 VDC) between the external
AC terminals and GR terminals		 Except between DC primary current and DC
secondary current
Dielectric strength 2,300 VAC 50/60Hz for 1 min between AC
external and GR terminals Leakage current:
5 mA max.		 Except between DC primary current and DC
secondary current
Power OFF
detection time		 10 ms min. 2 ms min.
Application
environ-
ment		 Ambient operating
temperature		 0 to 55 °C
Ambient humidity 10% to 90%
Atmosphere No corrosive gas.
Ambient storage
temperature		 -20 to 75 °C (excluding battery)
Altitude 2,000 m max.
Pollution degree 2 or less: Conforms to JIS B3502 and IEC 61131-2.
Noise resistance 2 kV on power supply line (Conforms to IEC61000-4-4.)
Overvoltage category Category II: Conforms to JIS B3502 and IEC 61131-2.
EMC Immunity Level Zone B
Vibration resistance Conforms to JIS 60068-2-6.
5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz
Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total)
Shock resistance Conforms to JIS 60068-2-27.
147 m/s2, 3 times in X, Y, and Z directions
Terminal block Fixed (not removable)
Terminal screw size M3
Applicable standards Conforms to EC Directive
Grounding method Ground to 100 Ω or less.

*1.Total of 110 mm with mounting brackets.

*2.Excluding cables.

*3.Use the external power supply to power input devices. Do not use it to drive output devices.

*4.This is the rated value for the maximum system configuration. Use the following formula to calculate power consumption for CPU Units with DC power.
Formula: DC power consumption = (5V current consumption × 5 V/70% (internal power efficiency) + 24V current consumption) × 1.1(current fluctuation factor)
The above calculation results show that a DC power supply with a greater capacity is required.

Item CP1E-[][]D[]-[] CP1E-N[][]D[]-[]
CP1E-NA[][]D[]-[]
Program capacity 2 K steps (8 Kbytes) including the
symbol table, comments, and program
indices of the CX-Programmer		 8 K steps (32 Kbytes) including the symbol table,
comments, and program indices of the CX-Programmer
Control method Stored program method
I/O control method Cyclic scan with immediate refreshing
Program language Ladder diagram
Instructions Approximately 200
Processing
speed		 Overhead processing time 0.4 ms
Instruction execution times Basic instructions (LD): 1.19 µs min.
Special instructions (MOV): 7.9 µs min.
Number of CP1W-series Expansion Units
connected		 CP1E-E10D[]-[]/[]14D[]-[]/[]20D[]-[]: None
CP1E-[]30D[]-[]/[]40D[]-[]/N60D[]-[]/NA20D[]-[]: 3 units
Maximum number of I/O points CP1E-E10D[]-[]: 10
CP1E-[]14D[]-[]: 14
CP1E-[]20D[]-[]: 20
CP1E-[]30D[]-[]: 150 (30 built in, 40 × 3 expansion)
CP1E-[]40D[]-[]: 160 (40 built in, 40 × 3 expansion)
CP1E-N60D[]-[]: 180 (60 built in, 40 × 3 expansion)
CP1E-NA20D[]-[]: 140 (20 built in, 40 × 3 expansion)
Built-in I/O CP1E-E10D[]-[]: 10 (6 inputs, 4 outputs)
CP1E-[]14D[]-[]: 14 (8 inputs, 6 outputs)
CP1E-[]20D[]-[]: 20 (12 inputs, 8 outputs)
CP1E-[]30D[]-[]: 30 (18 inputs, 12 outputs)
CP1E-[]40D[]-[]: 40 (24 inputs, 16 outputs)
CP1E-N60D[]-[]: 60 (36 inputs, 24 outputs)
CP1E-NA20D[]-[]: 20 (12 inputs, 8 outputs)
Built-in
input
functions		 High-speed
counters		 High-speed
counter mode/
maximum
frequency		 Incremental Pulse Inputs
10 kHz:
6 counters
5 counters (only for 10 I/O points)
Up/Down Inputs
10 kHz: 2 counters
Pulse + Direction Inputs
10 kHz: 2 counters
Differential Phase Inputs (4x)
5 kHz: 2 counters		 Incremental Pulse Inputs
100 kHz: 2 counters, 10 kHz: 4 counters
Up/Down Inputs
100 kHz: 1 counters, 10 kHz: 1 counters
Pulse + Direction Inputs
100 kHz: 2 counters
Differential Phase Inputs (4x)
50 kHz: 1 counter, 5 kHz: 1 counter
Counting mode Linear mode
Ring mode
Count value 32 bits
Counter reset
modes		 Phase Z and software reset (excluding increment pulse input)
Software reset
Control method Target Matching
Range Comparison
Input interrupts 6 inputs (4 inputs only for 10 I/O points)
Interrupt input pulse width: 50 µs min.
Quick-response Inputs 6 inputs (4 inputs only for 10 I/O points)
Input pulse width: 50 µs min.
Normal input Input constants Delays can be set in the PLC Setup (0 to 32 ms, default: 8 ms).
Set values: 0, 1, 2, 4, 8, 16, or 32 ms
Built-in
output
functions		 Pulse outputs
(Models with
transistor
outputs only)		 Pulse output
method and
output
frequency		 Pulse output function not included Pulse + Direction Mode
1 Hz to 100 kHz: 2 outputs
Output mode Continuous mode (for speed control)
Independent mode (for position control)
Number of
output pulses		 elative coordinates: 0000 0000 to 7FFF FFFF hex
(0 to 2147483647)
Absolute coordinates: 8000 0000 to 7FFF FFFF hex
(-2147483647 to 2147483647)
Acceleration/
deceleration
curves		 Trapezoidal acceleration and deceleration
(Cannot perform S-curve acceleration and
deceleration.)
Changing SVs
during
instruction
execution		 Only target position can be changed.
Origin searches Included
Pulse outputs
(Models with
transistor
outputs only)		 Frequency PWM output function not included 2.0 to 6,553.5 Hz (in increments of 0.1 Hz) with
1 output or 2 Hz to 32,000 Hz (in increments of
1 Hz) with 1 output
Duty factor 0.0% to 100.0% (in increments of 0.1%)
Accuracy: +1%/-0% at 2 Hz to 10,000 Hz and
+5%/-0% at 10,000 Hz to 32,000 kHz
Output mode Continuous Mode
Built-in analog Analog input Analog function not included Setting range: 0 to 6,000 (2 channels only for NA-type)
Analog output Setting range: 0 to 6,000 (1 channels only for NA-type)
Analog adjusters 2 adjusters (Setting range: 0 to 255)
Communi-
cations		 B-type Peripheral USB Port Conforming to USB 2.0 B type connector
  Transmission
distance		 5 m max.
Built-in RS-232C port No built-in RS-232C port Interface: Conforms to EIA RS-232C.
  Communications
method		 Half duplex
synchronization Start-stop
Baud rate 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps
Transmission
distance		 15 m max.
Supported
protocol		 Host Link
1:N NT Link
No-protocol mode
Serial PLC Links (master, slave)
Modbus-RTU Easy Master
Serial Option port Option Board cannot be mounted. 1 port (Option Board can be mounted only to
N30/40/60 and NA20 CPU Units.)
  Mountable
Option Boards		 One RS-232C port: CP1W-CIF01
One RS-422A/485 port (not isolated): CP1W-CIF11
One RS-422A/485 port (isolated): CP1W-CIF12
One Ethernet port: CP1W-CIF41
Communications
method		 Depends on Option Board.
synchronization Depends on Option Board.
Baud rate 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps
Compatible
protocols		 Host Link
1:N NT Link
No-protocol mode
Serial PLC Links (master, slave)
Modbus-RTU Easy Master
Number of tasks 17
One cyclic execution task
One scheduled interrupt task (always interrupt task 1)
Six input interrupt tasks (interrupt tasks 2 to 7)
Sixteen high-speed counter interrupt tasks (interrupt tasks 1 to 16)
Maximum subroutine number 128
Maximum jump number 128
Scheduled interrupt tasks 1 interrupt task
Clock Clock function not included.
The time of error occurrence displays
01-01-01 01:01:01 Sunday		 Included.
Accuracy (monthly deviation):
-4.5 min to -0.5 min at ambient temperature of 55°C,
-2.0 min to +2.0 min at ambient temperature of 25°C,
-2.5 min to +1.5 min at ambient temperature of 0°C
Memory
backup		 Built-in EEPROM Ladder programs and parameters are automatically saved to built-in EEPROM
A section of the Data Memory Area can be saved to the built-in EEPROM.
Battery backup With
CP1W-BAT01 Battery
(Sold separately)		 Battery cannot be mounted. CP1W-BAT01 can be used.
Maximum battery service life: 5 years
Backup Time
Guaranteed value (ambient temperature: 55°C):
13,000 hours (approx. 1.5 years)
Effective value (ambient temperature: 25°C):
43,000 hours (approx. 5 years)
CIO Area Input Bits 1,600 bits (100 words): CIO 0.00 to CIO 99.15 (CIO 00 to CIO 99)
Output Bits 1,600 bits (100 words): CIO 100.00 to CIO 199.15 (CIO 100 to CIO 199)
Serial PLC Link Words 1,440 bits (90 words): CIO 200.00 to CIO 289.15 (words CIO 200 to CIO 289)
Work Area (W) 1,600 bits (100 words): W0.00 to W99.15 (W0 to W99)
Holding Area (H) 800 bits (50 words): H0.00 to H49.15 (H0 to H49)
Bits in this area maintain their ON/OFF status when operating mode is changed.
Auxiliary Area (A) Read-only: 7,168 bits (448 words) A0 to A447
Read/write: 4,896 bits (306 words) in words A448 to A753
Temporary Relay Area (TR) (TR Area) 16 bits: TR0 to TR15
Timer Area (T) 256 timer numbers (T0 to T255 (separate from counters))
Counter Area (C) 256 counter numbers (C0 to C255 (separate from timers))
Data Memory Area (D) 2 Kwords: D0 to D2047
Of these, 1,500 words can be saved to
the backup memory (built-in EEPROM)
using settings in the Auxiliary Area.		 8 Kwords: D0 to D8191
Of these, 7,000 words can be saved to the backup
memory (built-in EEP-ROM) using settings in the
Auxiliary Area
Operating modes PROGRAM mode:
Program execution is stopped.
Preparations can be executed prior to program execution in this mode.
MONITOR mode:
Programs are executed.
Some operations, such as online editing, and changes to present values in I/O memory, are
enabled in this mode.
RUN mode:
Programs are executed.
This is the normal operating mode.



HMI/SCADA Software

Advantech WebAccess is a browser-based HMI/SCADA software allowing users to control and configure systems remotely over the internet with a central project database and distributed SCADA architectures. Advantech Studio is a powerful, integrated collection of automation tools including all the building blocks required to develop HMI/SCADA applications. Advantech's complete SCADA/HMI software offering empowers professionals to develop applications efficiently and cost-effectively.

Product
Model Number Description
Advantech Studio   Web-enabled HMI/ SCADA Software

Advantech WebAccess   Browser-based HMI/SCADA Software





More Articles ...

  1. SoftLogic Software
  2. Advantech Studio
  3. Advantech WebAccess
  4. KW MULTIPROG
Page 52 of 156
  • Installation And Commissioning
  • Designing Services
  • On-Site Troubleshooting
  • Retrofit Controls
  • Assessment Services
  • Repair & Maintenance

new installation

Installation And Commissioning Services

Flawless installation quality, execution, cost management, safety and smooth start-up – make C&M an ideal partner today and throughout the entire lifecycle of your control system equipment. C&M's installation and commissioning services are available to meet critical business needs anywhere in Pakistan, regardless of size or complexity. Support is available for new applications as well as re-commissioning services or ‘return to service’ equipment. Services include functional test and on-site configuration of control system components through full process control commissioning. Long term support for all automation related products including Programmable Logic Controllers PLC's and VFD's is provided to help you run your operations smoothly

Services include:

• Machinery/Plant/Equipment placement checks

• Complete control panel wiring, Riser diagram, Cable tray laying and field wiring

• Wiring dry tests, wiring hot tests, power up checks, motor rotational checks, sensor and actuator signal checks

• Functional verification of system hardware and software at site

• Client training

• Control tuning and sensor correlation

• Performance verification and documentation

Services Benefits

• Smoother installations

• Faster start up at lower cost

• Complete knowledge transfer from Manufacturer to client ensuring smooth operation across plant life-cycle

• Optimized system performance

Why choose us!

Our vision

To be pioneer of our time in the field of automation engineering,that will enable us to create value for everyone involved by delivering world-class factory automation services.

Our Mission

We increase efficiency of your process,business and our society by automation through reduction of resource utilization,waste and environmental impact.

Reliability

We strive to perform root cause analysis for all frequent breakdowns so that such problems can be prevented in future.

Expertise

With a very diverse experience of all major industrial segments, our expertise and System Integration is unmatched.

Designing

Designing Services

C&M is a leading Systems Integrator providing integrated strategies, solutions, systems and services that address the needs of today’s industrial processes and companies’ goals. C&M helps clients by developing, implementing, and supporting custom process automation and information integration solutions.

To meet client needs for complete solutions and results, C&M utilizes a variety of advanced engineering concepts. This process begins with understanding our clients’ goals and needs and developing solutions that meet and exceed their expectations.

C&M has its own, in-house development team, with capabilities to design and prototype from PCB level to Process control system design.

Our strengths include:

  • Micro-controller  based embedded system design
  • Programmable Logic Controller (PLC) based Control System Design, and PLC programming services for Siemens, Mitsubishi, Allen Bradley, Omron, Fuji, and Opto22 are offered
  • Computer-based machine control and interface development on Siemens WinCC and LabView
  • Computer based data-logging, monitoring, automatic testing systems with report generation
  • Control Panel Design and wiring

panel



On Site Troubleshooting

On-Site Troubleshooting

With our on-site services, you can obtain C&M field support engineers to assist your maintenance staff with troubleshooting, preventive and reactive maintenance tasks.

Field support engineers are available on as needed, scheduled, or full-time basis to meet your specific needs and maintenance strategy.

  • Callout Services — Repair and troubleshooting as needed for your automation-related issues.
  • Drives Startup Services — Quickly commission your Allen-Bradley drives and prevent potential startup problems. Includes 1 or 2 year extended warranty.
  • Conversion Services — Convert your existing programmable controllers, drives and motors to new or different technologies.
  • Preventive Maintenance Services — Regularly scheduled maintenance for your automation and related equipment to prevent potential problems and extend component/system life.
  • Embedded Engineer — Full-time labor to perform reactive and preventive tasks in continuous support of your maintenance department.

Callout Services

Day or night, C&M field service professionals are available for dispatch on an as needed basis to help troubleshoot and resolve unplanned downtime events, problems affecting critical operations and other automation-related issues. Callout Services are billed on a time and material basis.

Benefits And Features

  • 24x7x365 emergency breakdown support
  • Assistance for startup, special projects, and peak workloads
  • Production problem resolution
  • Technical support during maintenance activity
  • Factory-certified engineers with skills matched to your application or problem

Drives Startup Services

Integration and start-up of your system does not need to be complex and time consuming. With our Start-up Services, you can leverage our extensive product and industry experience to quickly commission drives and reduce the time between integration and actual machine operation.

Benefits And Features

  • Reduce time between integration and actual start-up
  • Provide a cost-effective alternative to internal start-up resources
  • Improve drive operation
  • Reduce risk of performance problems and premature equipment failures
  • Improve labor cost forecasting (thru fixed cost of services)
  • Verification of proper drive and motor installation, control and power wiring, and AC voltage and distribution network
  • Power-up, drive checks, grounding checks and setup
  • Custom drive configuration/tuning to meet specific application requirements
  • Adjustment of operating parameters for optimal performance
  • Documentation of drive and motor nameplate information, application information, drive settings and operating parameters

Conversion Services

As your automation equipment becomes older and less reliable, you can repair it, replace it with identical equipment, or migrate it to a new/different technology.

With conversion services from C&M, you can leverage our automation expertise if you choose to migrate. For a fixed price you will receive a complete upgrade solution including hardware, software conversion engineering and start-up services. Benefits of OnSite Conversion Services include:

  • Improved process availability and production capacity
  • Improved manufacturing quality
  • Decreased long term costs and unplanned downtime

OnSite Conversion Services are available for:

  • Upgrading your Operator Interface with current technology (one-to-one)
  • Replacing an AC or DC drive with current technology (one-to-one)
  • Replacing a PLC controller with current technology (one-to-one)
  • Updating automation software and communication/HMI technology
  • Converting an analog PLC controller, drive, or HMI product to its digital counterpart
  • Implementing or converting a network for your automation assets

Maintenance Services

Lost productivity caused by poor performance or unplanned failure of your automation assets can significantly reduce your revenue and profitability. With a Preventive Maintenance Service Agreement, we help you design and implement the most efficient preventive maintenance program for optimizing the performance of your assets including drives, programmable logic controllers and motion systems.

What Makes Our Preventive Maintenance Services Agreement Different?

Total protection and peace of mind with the full support of C&M to stand behind your preventive maintenance program:

  • 24/7 remote troubleshooting available to get your plant online as fast as possible
  • Remediation of equipment problems
  • Complete documentation of all activities performed during scheduled visits
  • Full-service warranty that ensures we'll repair or replace the parts in the unlikely event of a failure

Embedded Engineer

A C&M embedded engineer provides full-time, on-site labor to perform reactive and preventive tasks in continuous support of your maintenance department. Services can include preventive maintenance, support/troubleshooting, startup, conversions/upgrades, condition monitoring, project management, OJT, performance analysis, application development and more.

Benefits

  • Obtain skilled resources to quickly and efficiently complete engineering and programming projects
  • Reduce response time to equipment malfunctions and unplanned downtime
  • Perform preventive maintenance as scheduled
  • Improve machine operator skills and internal troubleshooting capabilities
  • Supplement operations/maintenance staff during peak workloads
  • Obtain spare parts and additional services through one resource
  • Fully protect your biggest investment — your operations

Retrofit Controls

Retrofit Controls

It is always better in the long run to upgrade your controls. Obsolete parts are a hassle to maintain and expensive to procure. In time upgradation not only saves you from unexpected downtimes, but also provides opportunity to improve upon machine knowledge. C&M can design a new control system to interface with your existing electrical devices or, for those with older systems that have obsolete or worn devices. We can design and build a new enclosure with all new devices.

Retrofit controls options:

  • Touch Screen Operator Interface.
  • PC Based Operator Interface
  • HMI (Human Machine Interface) Monitor and control of all types of on-line off-line devices including Temperature, Solenoids, Rectifiers, Pumps, Filters etc.

We have successfully retrofited a number of CNC machines with new PC based controls including Lathe, Milling, Turret Punch, EDM Wire-cut.

Following Retrofit and Migration services have been provided by us to various clients

  • Siemens SIMATIC S5 to S7
  • Allen Bradley PLC-5 to SLC-500/CompactLogix
  • GE-FANUC 90-30 to RX3i
  • Manufacturers custom controls to Standard PLC/PAC based system

Our engineers are also capable of retrofitting Generator Controls.



Assessment Services new

Assessment Services

Safety Assessments

Safety Assessments help you comply with current and emerging standards by providing consulting services for safety critical controls. Our solutions can help reduce lost-time accidents, improve workplace safety and improve employee morale, which will ultimately result in increased productivity.

These exception-based assessments are a quick and inexpensive way to audit a machine /work cell to determine the obvious points of operation and power transmission hazards. The result of the hazard assessment is a concise report that identifies the location of each observed hazard and provides a rough budgetary estimate for safeguarding. The hazard assessment will also provide:

  • General recommendations on how to guard a machine/work cell
  • A prioritization plan for your machine safeguarding project when many unique machines need to be evaluated and upgraded
  • The unbiased, third party opinion of a machine safety consultant with the required knowledge of relevant safety standards, best practices and current safeguarding technology.



Repair & Maintenance

Browse by Manufacturer

 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z


repair service

C&M is providing Engineering services to all type of industries from a decade. We offer repair & services of all type of motor controllers including VFD, Servo and Stepper drives. We are also specialize in providing services for Machine cards, PLC`s,  HMI`s, Electrical Panels, AC/DC Drives, Controllers, Power Transmission, Servo drive, Electric Actuators, PCB Board, AC/DC, DC/DC Drives, Monitor, Equipment & Compressors.

C&M Engineering offers a cost effective and reliable service for all your machinery cards, drives repairs from many of the leading manufacturers. All of our technicians have been trained and are supported by continuous improvement programs, refresher courses and regular service bulletins. We also offer evaluation of your repair, depending on the complexity of the equipment.

Why choose C&M, Pakistan?

Because we have the knowledge and expertise to fix and rebuild your device professionally same as original. Our facility is fully equipped with most modern equipment's to meet the demanding challenges required to fix your equipment.

C&M is pleased to offer you our best services.

Why choose us!

Because we have the knowledge and expertise to fix and rebuild your device professionally same as original. Our facility is fully equipped with most modern equipment's to meet the demanding challenges required to fix your equipment.

C&M is pleased to offer you our best services.
